How Much Delay Goes Unnoticed? Quantifying Perceptual Latency Thresholds Across Multimodalities in Virtual Reality

Abstract

In virtual reality (VR), delays between a user's action and sensory feedback disrupt immersion and responsiveness, yet careful budgeting can expand rather than degrade VR's design. We quantify perceptual latency thresholds across three modalities (lighting, sound, rotation) using a fixed-staircase procedure with ternary judgments (N = 20) to estimate the Point of Subjective Simultaneity (PSS) and Temporal Binding Window (TBW). Sound showed the smallest unnoticed delay, rotation the largest, and thresholds differed significantly by modality. Extending to a conventional display revealed no platform differences, indicating thresholds are governed by sensorimotor engagement rather than immersion, yielding latency guidelines for VR application.

Video

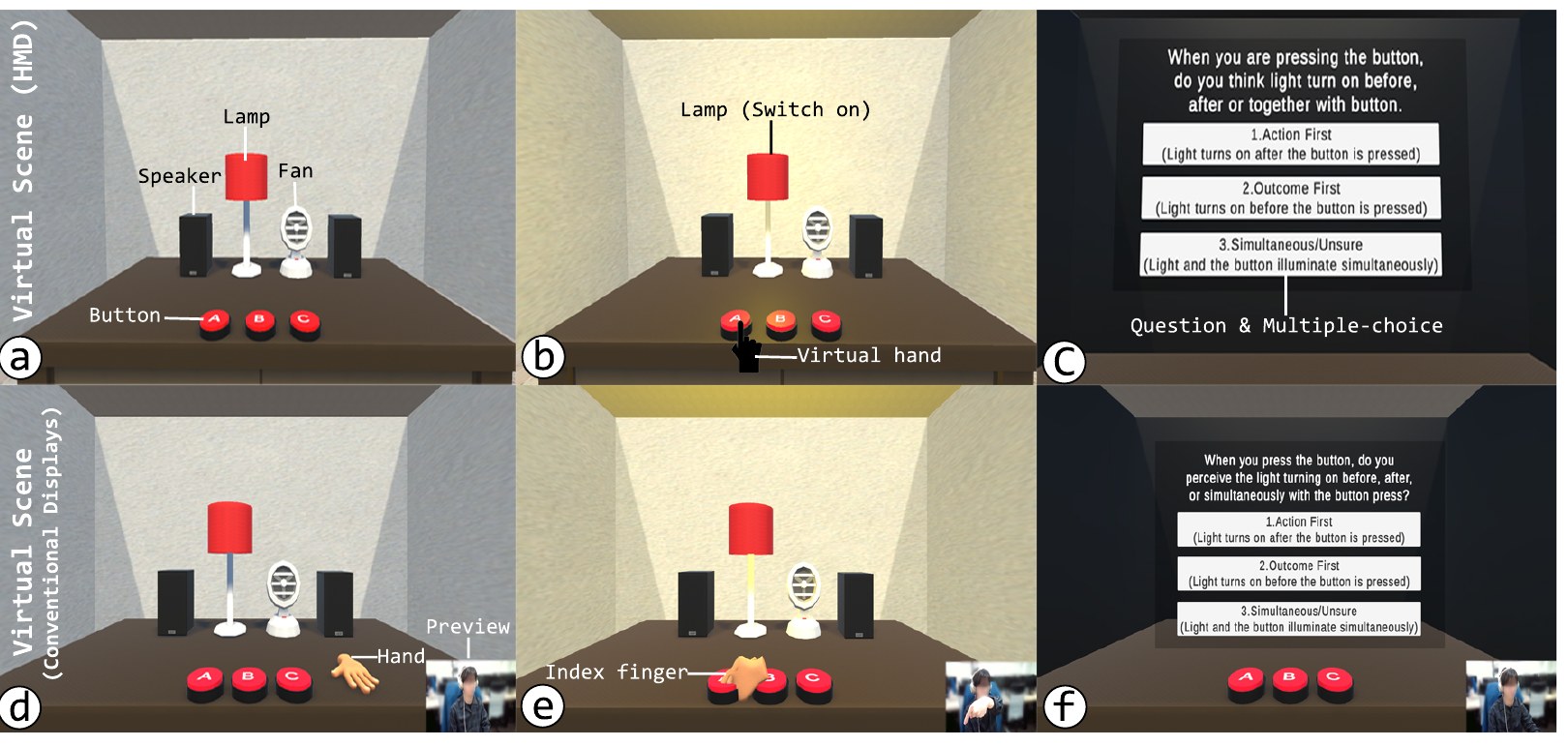

SetupOne virtual room, three kinds of feedback, two displays

Every trial starts the same way: the participant presses a virtual button with their right index finger. One of three things happens after a controlled delay, and the participant reports which came first.

Hardware & software at a glance

Engine

Unity 2022.3.47f1, Oculus Integration, Low Poly Office Set

HMD

Meta Quest 3, built-in hand tracking, 72 Hz

Conventional display

75 Hz monitor; Intel RealSense D415 + MediaPipe 0.10.3 hand tracking

Audio

Sony WH-1000XM2 noise-cancelling headphones, 60% volume

Rotation stimulus

Virtual fan at 800 RPM, with a brief spin-up

Baseline latency (subtracted)

VR: sound 14 ms, light/fan <0.01 ms · Display: light/fan 21 ms, sound 31 ms

MethodFinding the point where “late” feels “on time”

We used a fixed-step staircase. The system delay starts at 0 ms and moves in 10 ms steps within −400 to +400 ms, depending on what the participant reports:

1. Press. The participant presses the virtual button, and the feedback fires after the current delay.
2. Judge. They choose one of three answers: Action first, Outcome first, or Simultaneous / unsure.
3. Adjust. Outcome first or Simultaneous adds 10 ms of delay; Action first removes 10 ms. The staircase settles where “Action first” is reported about half the time.
4. Repeat. 50 trials per modality, 3 modalities, 150 trials per platform (about 45 min), with modality order counterbalanced.

Twenty right-handed participants (aged 20–30; 16 men, 4 women) took part. Each did Experiment 1 (HMD) and then Experiment 2 (conventional display).

ResultsSound is noticed first, rotation last, on both displays

Experiment 1: HMD

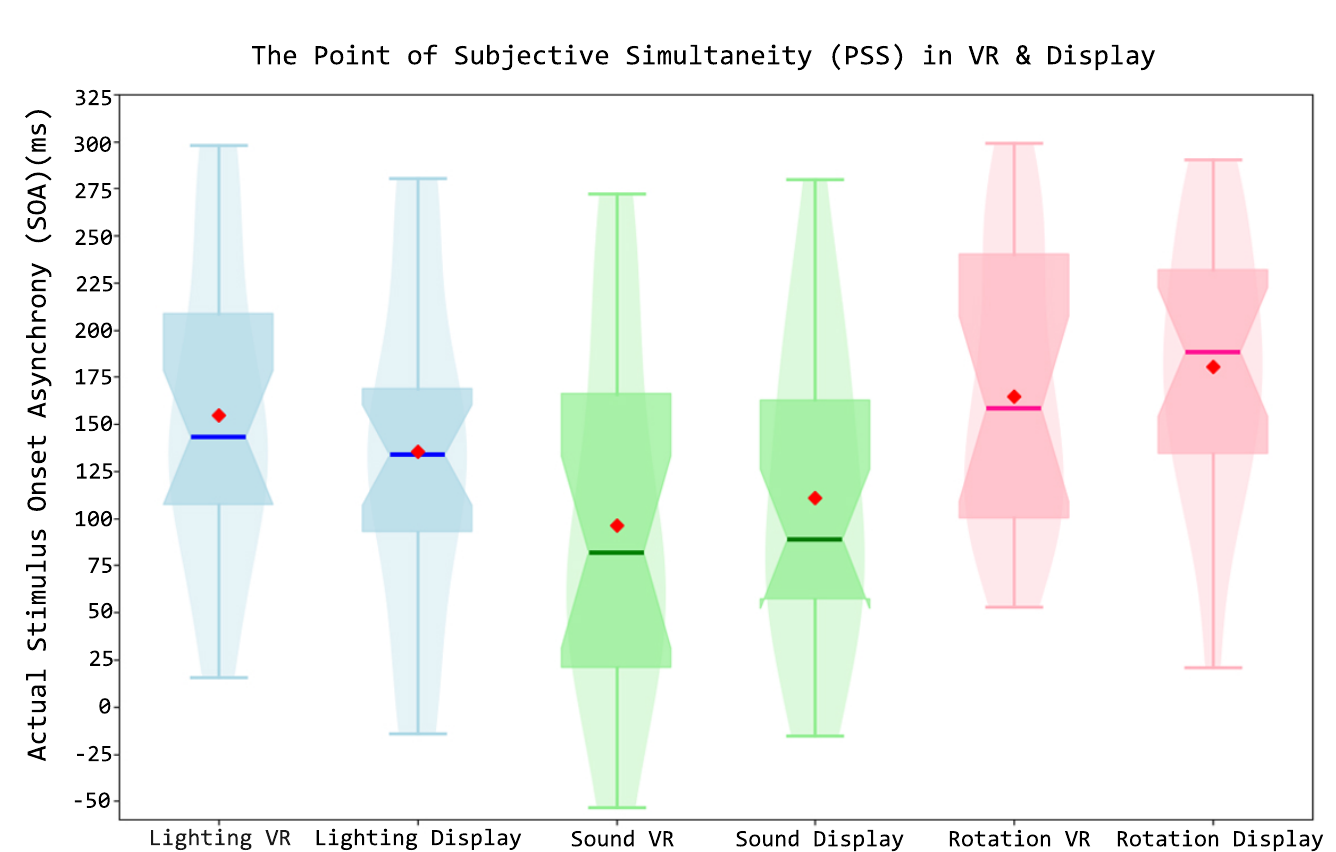

Mean PSS was 154.83 ± 18.34 ms for lighting, 95.12 ± 21.60 ms for sound and 164.70 ± 16.54 ms for rotation (mean ± SEM). Modality had a significant effect (one-way RM-ANOVA, F(2,38) = 17.73, p < .01). Sound differed from both lighting (p = .01) and rotation (p < .01) after Bonferroni correction. TBW did not differ across modalities (F(2,38) = 1.48, p = .23). This supports H1-1 and rejects H1-2.

Experiment 2: Conventional display

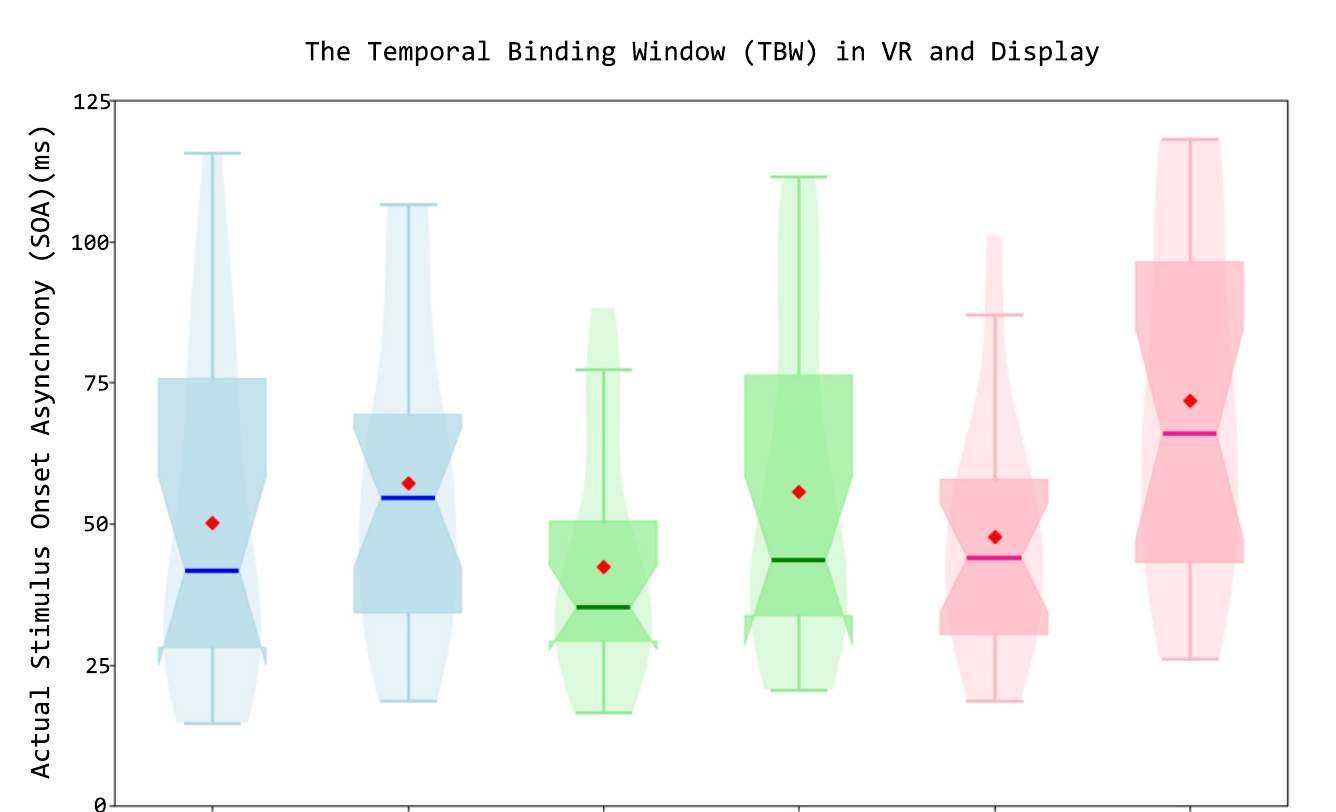

Mean PSS was 134.36 ± 19.89 ms (lighting), 109.57 ± 18.49 ms (sound) and 179.73 ± 15.69 ms (rotation), and sound again differed from the other two. Here TBW also differed by modality: rotation's window (72.20 ms) was wider than sound's (p = .05).

A two-way RM-ANOVA found no main effect of platform on PSS (F(1,19) = 0.03, p = .86) or on TBW (F(1,19) = 0.56, p = .46), and no platform × modality interaction. Modality had a strong main effect on both. Because platform order was fixed, we read this as consistent with platform-invariant thresholds rather than proof of it.

Show the original Figures 2 and 3 from the paper

Try itFeel the delay yourself

Pick a modality and a delay, then press the button. Try to find the point where the response stops feeling instant.

GuidelinesSpend your latency budget by modality

We define the latency guideline as the PSS: the delay that users still perceive as simultaneous with their action.

These thresholds mark where a delay becomes entirely unnoticed, not just tolerable. They are much stricter than the latency typical of Wi-Fi or Zigbee smart-home devices.

Scope & limitations

• Platforms differ in more than immersion. Refresh rate (72 vs 75 Hz), field of view and stereo depth, distractions, and arm posture all differed between the HMD and the monitor.
• The fan's spin-up is realistic but adds its own delay, which may inflate the rotation PSS. Stimuli with an instant onset, or force feedback, would isolate motion perception.
• Platform order was fixed (HMD first). Learning or fatigue could contribute to the platform result and to the rotation-TBW difference between experiments.
• Virtual-only interaction. We did not compare with physical buttons or tactile clicks.
• Sample size (N = 20) may inflate between-subject variability. TBW reflects the spread of the staircase, not a fitted psychometric slope.

BibTeX

@inproceedings{hatsakornkhanachok2026delay,
  title     = {How Much Delay Goes Unnoticed? Quantifying Perceptual
               Latency Thresholds Across Multimodalities in Virtual Reality},
  author    = {Hatsakornkhanachok, Natthaphon and Punpongsanon, Parinya},
  booktitle = {International Conference on Extended Reality (ICXR)},
  year      = {2026}
}

Acknowledgments

This work has been partially supported by JSPS Fellows Grant Number 16J00049 and JST BOOST Grant Number JPMJBY25E2.
